A-A-52301
1. ALL DIMENSIONS IN INCHES.
2. ALL DIMENSIONS ARE REFERENCE DIMENSIONS.
3. ALL NUTS ARE WING NUTS.
4. THE BOLTS, WING NUTS, WASHERS, SCREWS, AND CHAIN SHALL BE COMMERCIAL GRADE CORROSION RESISTANCE. THE BOLTS SHALL HAVE A WASHER UNDER EACH HEAD AND EACH WING NUT. SECURE CHAIN WITH SCREW EYES.

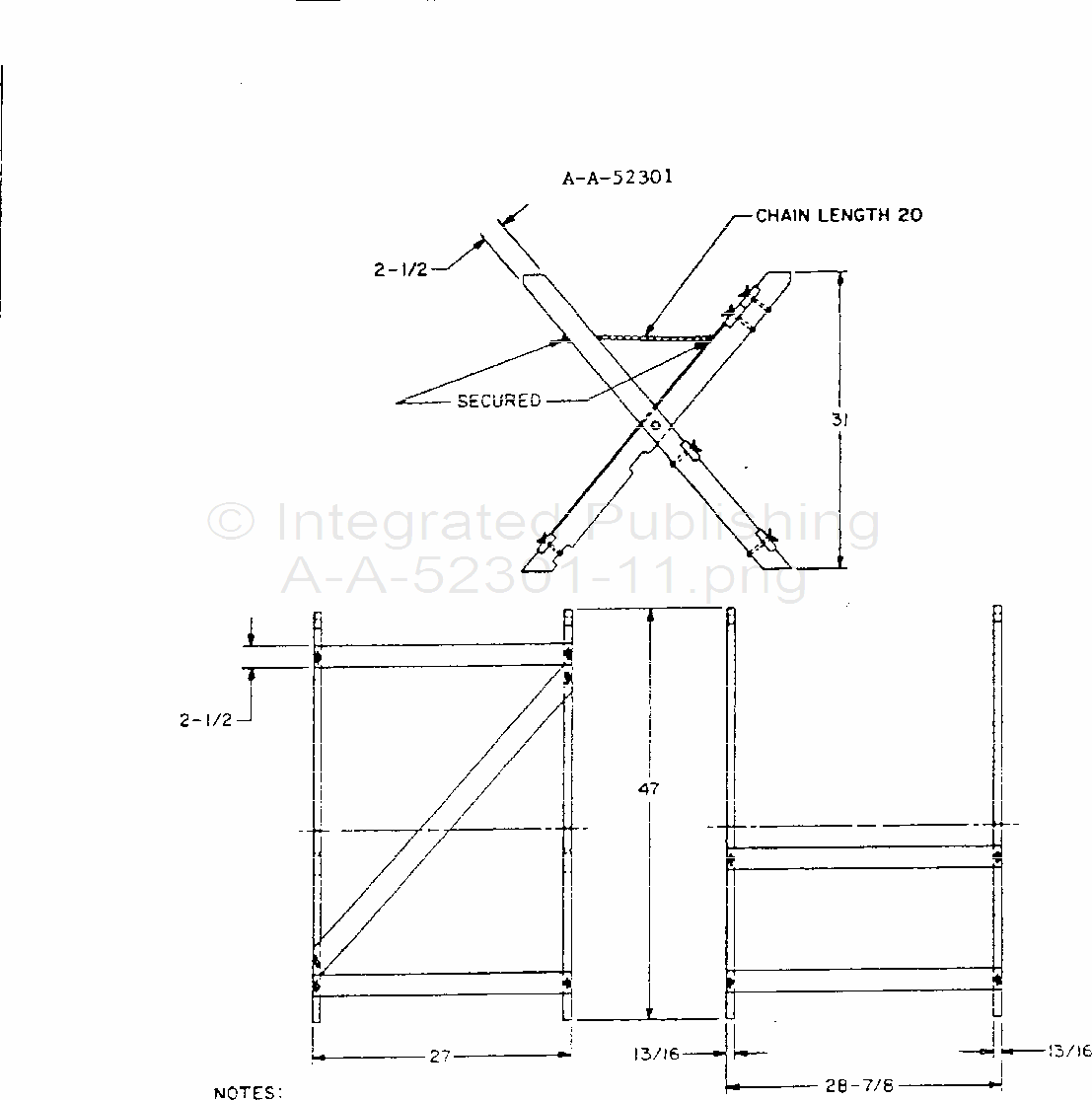

FIGURE 5. Trestle, drawing board (38 x 48 inch drawing board).
