A-A-52301 Drawing Board And Drawing Board TrestlesThis description covers drawing boards and drawing board trestles of various sizes, to be used for drafting, layout or military projection applications.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12


A-A-52301





NOTES :



ALL DIMENSIONS ARE IN INCHES. TOLERANCES NOT OTHERWISE SPECIFIED SHALL BE 1/32 INCH. WORKING SURFACES SHALL BE A TRUE PLANE WITHIN 1/64 INCH FOR 12 INCH INCREMENT; ANY DEVIATION SHALL BE EVENLY DISTRIBUTED OVER THE ENTIRE INCREMENT ALL EDGES SHALL BE STRAIGHT WITHIN 1/64 INCH END TO END.

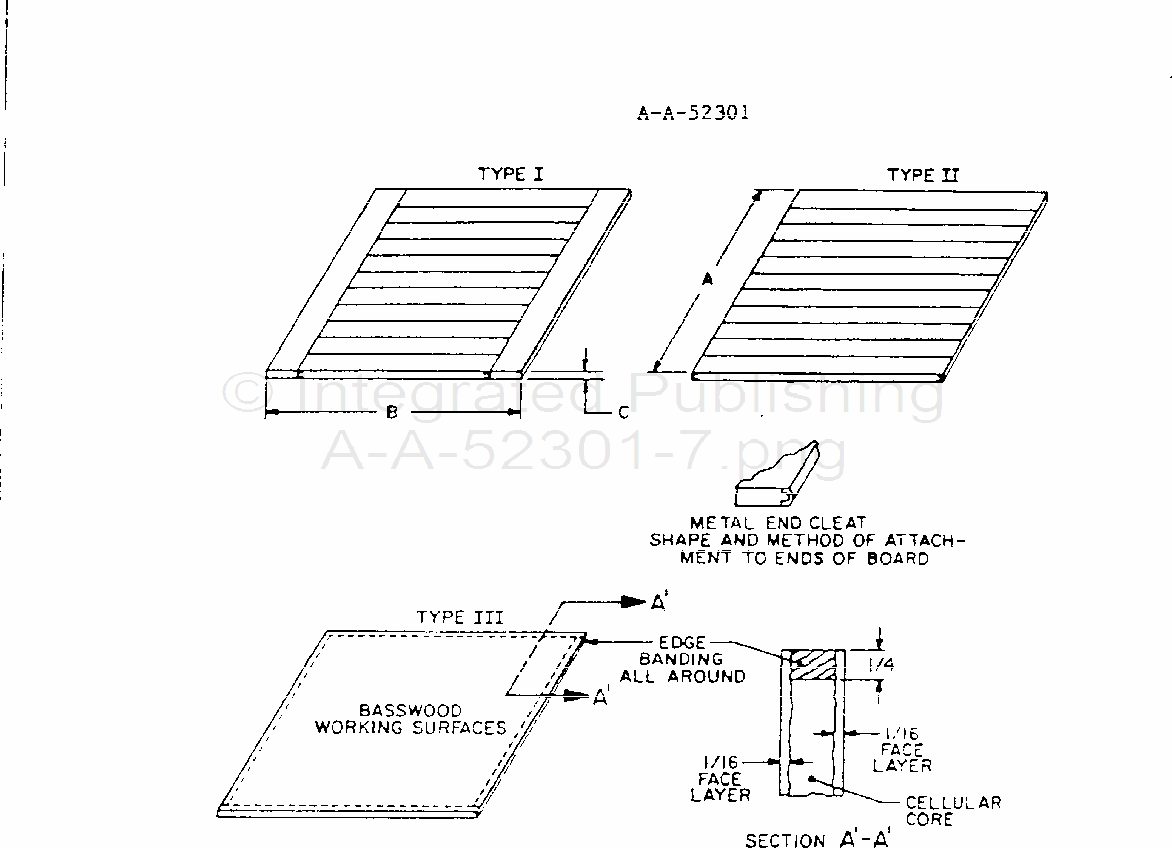

            FIGURE 1. Drawing boards – desk type I-II-III.
