A-A-52301
1. ALL DIMENSIONS IN INCHES.
2. ALL DIMENSIONS ARE REFERENCE DIMENSIONS
3. ALL NUTS ARE WING NUTS.
4. THE BOLTS, WING NUTS, WASHERS, SCREWS, AND CHAIN SHALL BE COMMERCIAL GRADE CORROSION RESISTING STEEL, OR SHALL BE TREATED FOR CORROSION RESISTANCE. THE BOLTS SHALL HAVE A WASHER UNDER EACH HEAD AND EACH WING NUT.

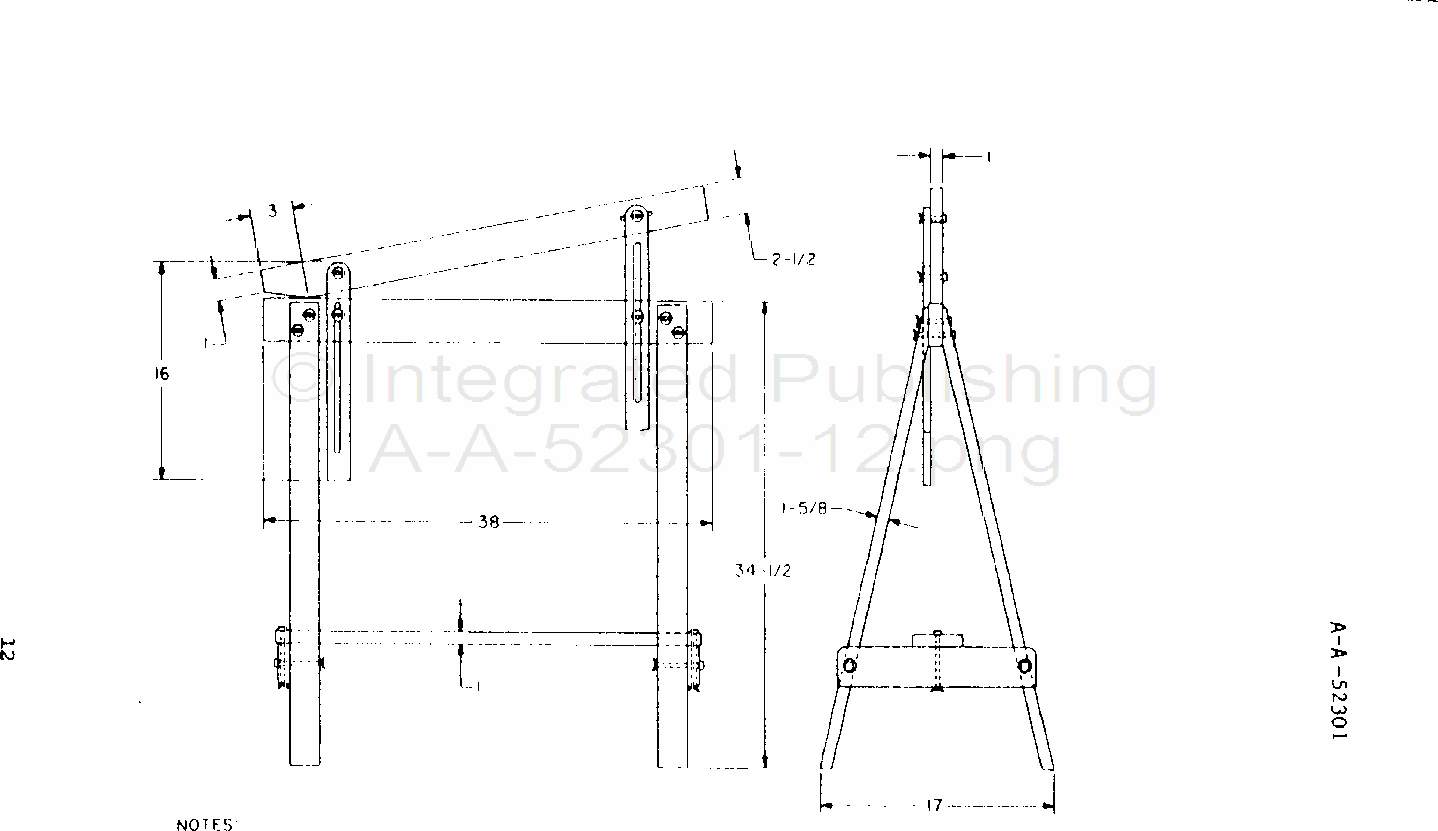

FIGURE 6. Trestle, drawing board (38 x 48, 45-1/2 x 60 x 120 inch drawing boards).
